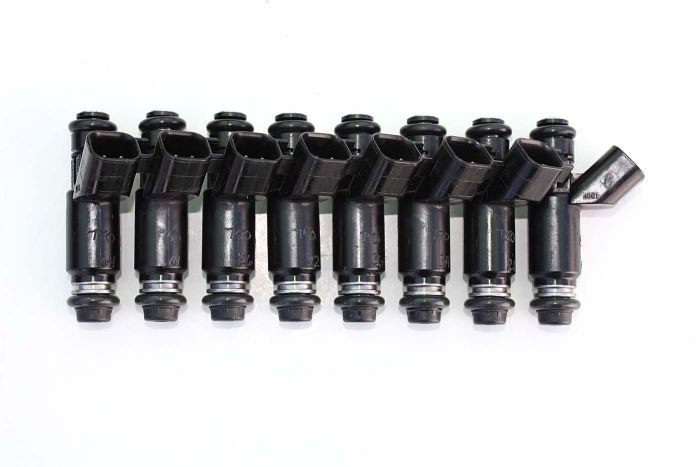

72lbs/750cc CUSTOM, FLOW-MATCHED SETS - FITS: LS2, SRT-8, Cobra/Shelby

USE THIS SET OF 72lb FUEL INJECTORS FOR A HIGHLY MODIFIED V-8 ENGINE WITH SUPER-CHARGED HORSEPOWER.
This fuel injector set has been carefully matched for an exact engine application.

PURCHASE THIS SET OF FUEL INJECTORS IF YOU HAVE:

V-8 engine with a Screw- or Roots-type Supercharger. Any brand.
Option 1: The completed V-8 will produce between 600 and 640 bhp.Street-driven, daily-driver, running E85.
Option 2: The completed V-8 will produce between 840 and 870 bhp.Street-driven, daily-driver, running Pump Gas, 91-95 octane.
YOU REQUIRE GOOD IDLE QUALITY.
And at $549.99 for the set you won't have to pay an arm-'n'-a-leg!

Fiveo Custom set of 72lbs/hr, 750cc/min EV6 New Generation, flow-matched, high-impedance fuel injectors.
Meets or exceeds all requirements for U.S. Spec vehicles:
Ford: Cobra/Shelby 5.4L, 5.8L
Dodge/Chrysler: SRT-8, 5.7L, 6.0L, 6.2L
Chevrolet: LS2

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

Fiveo believes our injector to be a better choice for most modders and tuners.
Our injectors are custom-manufactured to exact specifications from brand new American-made fuel injector "cores" in large-quantity batches to achieve the highest quality product.
The resulting sets are all-fuels rated; including pump gasoline and race gas (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are sealed and placed in matched sets ready for shipping.

Injector Body Design: EV6, STANDARD-Length
Injector type: Saturated

Fuel Nozzle: Single-hole disc w/diffuser plate, maximum atomization - WATCH VIDEOS.
1. Pulse Test: 2.5 ms at 5400 rpm and 43.5 PSI
2. Idle Test: 16 ms at 900 rpm and 43.5 PSI
SPECIAL NOTE ABOUT OUR SINGLE-HOLE FUEL NOZZLE.
"You've got a V-8 man! You don't drive a finicky inline 4. You don't need an injector with 18 pinholes. Get over it"

Flow rate:
72 lbs/hr at 43.5 PSI
Dead time (latency): 0.600 ms at 14 volts
Minimum pulse width: 1.7 - 2.0 ms
Electrical connector type: U.S. CAR
Overall Length: 2.5 in./63.5 mm
O-ring to o-ring Length: 2.05 in./52.0 mm
Diameter: .60 in./16.25 mm
O-rings: Viton, Top and bottom, .55 in./14.50 mm
Resistance: 12.5 Ohms
(All fuel injector specifications meet or exceed the manufacturer's specification standard).

Fiveomotorsport has been providing custom fuel injectors world-wide since 2000.
We are fuel injector experts - email with your questions.

Item Condition:
All of the Fiveomotorsport products are shipped in brand-new condition unless otherwise stated and covered by our warranty outlined below.

Fiveo's Exclusive Guarantee:
We stand behind all of our products with our 36 months/unlimited miles warranty. If you are not 100% satisfied, we will refund your purchase price for returned fuel injectors in their original packaging. If you ever have an injector go outside specification or fail for any reason when functioning within the stated operating conditions, we will replace it with a brand new fuel injector. You pay only the shipping cost (some racing applications may void this warranty).
Fiveomotorsport has been a proven seller on eBay since we established in 2000, and we have received over 5000 Positive Feedback replies from satisfied customers. We are fuel injector experts—email us with your questions.
