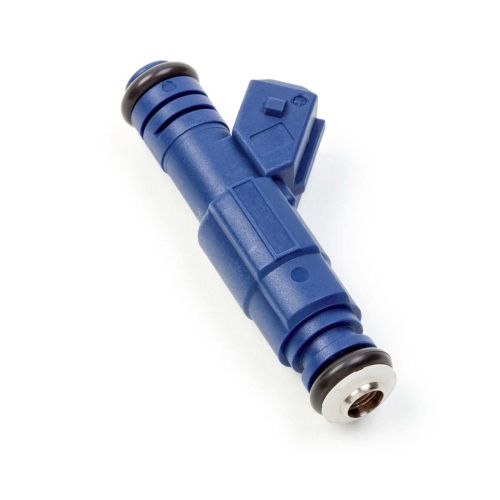

1000cc, 96lb Bosch EV6 Gen III U.S. Domestic/Euro Long fit fuel injectors

Custom manufactured, high-performance, flow-matched Bosch fuel injectors.
These fuel injectors are flow rated at 1000cc/min - See complete flow rate chart below.

• List price is for a single (1) fuel injector only.

• Order single injectors or custom, flow-balanced and matched sets

• Injectors are delivered with a complete flow-data chart indicating individually tested dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% duty-cycle for each injector, along with a complete dead time (latency) table.

Injector Body Design: Metal and composite plastic (color may be red or blue)

Electrical connector: EV1
Fuel Delivery: Single-hole-disc
Length: 3 inches, 74 mm
Body Diameter: 16 mm
Oring Diameter: Top and bottom, 14 mm (US/Euro Fit)
Coil resistance: 14.8 Ohm
Sample Dead Time (latency): 0.900 ms at 14 volts

Flow rates:
96lbs/hr, 1000cc/min at 43.5 PSI (3 BAR)
102lbs/hr, 1090cc/min at 50 PSI (3.5 BAR)
110lbs/hr, 1180cc/min at 58 PSI (4 BAR)

Filter basket on top with a single-hole-disc fuel delivery nozzle for superior fuel atomization.
(All fuel injector specifications meet or exceed the manufacturer's specification standard).
