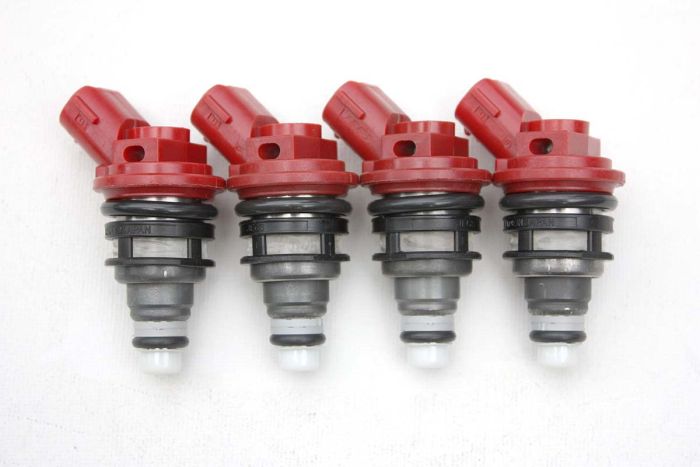

11083-1200cc, Subaru Impreza, WRX/STi, Matched Sets Available
USE WITH A HIGHLY MODIFIED ENGINE ONLY
CAN BE INSTALLED with the stock ECU
High-performance, Japanese Electronics Corp (JECS) fuel injectors -
Guaranteed Matched Sets
List prices include set of 4 fuel injectors or purchase singles
FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.
FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
E85 Fuel usage - Because of the high-H2O levels, ethanol will not rust but tends to "dry" the orifices in stainless-steel constructed fuel injectors. Customers should beware that this can be a problem with some fuel injectors and may cause a "sticking" problem. Periodic lubrication is recommended if your engine will be left without starting/running for extended periods - weeks to months - at a time.
| Manufacturer | JECS/Fiveo, MODIFIED ONLY |
|---|---|
| OEM or Aftermarket | High Performance |
| Connector Type | Sumitomo |
| Impedance | 12.5 Ohms |
| Part Number | 11083-1200 1200cc JECS Subaru Impreza, WRX STi Side-Feed Fuel Injectors |
| Year(s) | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| Make | SUBARU |
| Model | IMPREZA |
| Engine | 4X4, H4, 1.8L, 2, GAS, BRIGHTON, H4, 1.8L, 2, GAS, BRIGHTON, H4, 2.2L, 4, GAS, H4, 1.8L, 2, GAS, H4, 2.2L, EJ22EZ, 4, GAS, L 4X4, H4, 1.8L, 2, GAS, L, H4, 1.8L, 1, GAS, L, H4, 1.8L, 2, GAS, L, H4, 2.2L, 4, GAS, L, H4, 2.2L, 6, GAS, LS, H4, 1.8L, 2, GAS, LX, H4, 2.2L, 4, GAS, LX, H4, 2.2L, 6, GAS, OUTBACK, H4, 1.8L, 2, GAS, OUTBACK, H4, 2.2L, 4, GAS, OUTBACK, H4, 2.2L, EJ22EZ, 4, GAS, WRX STI LIMITED, H4, 2.5L, EJ257, Turbo, GAS, WRX STI, H4, 2.5L, EJ257, Turbo, GAS |
