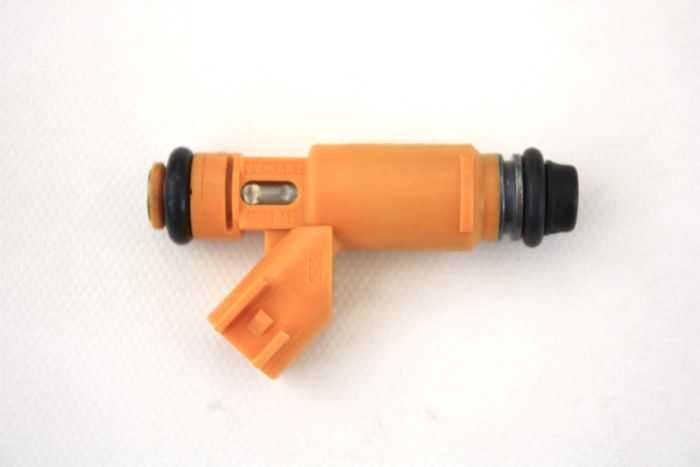

1600cc Asphalt II Series, High Impedance - U.S. Domestic Standard Fit

High-performance, high-impedance, flow-matched, Fiveomotorsport Asphalt 2, 1600cc/min fuel injectors for U.S. Domestic "standard" fitment.

• CHECK OUR COMPETITORS FUEL INJECTORS. THEY ARE SPECIFICALLY RATED FOR NATURAL GAS ONLY.

• List Price Includes: ONE (1) fuel injector with o-rings/seals

• OUR ASPHALT-SERIES FUEL INJECTORS ARE RATED FOR GASOLINE, OXYGENATED (MTBE, ETHER) RACING FUEL OR ANY OF THE METHYL ALCOHOL (METHANOL) COMPOUNDS.

• We sell 1600cc/min and 2000cc/min flow-rated, Asphalt II, EV6/EV14 fuel injectors.  All new o-rings included for installation

• You don't get this kind of technology from an OE injector.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.

The injectors incorporate a single disc fuel delivery nozzle with a wide cone spray for superior fuel atomization (see photos).

Use for all forced-air induction 4, 6, and 8 cylinder engines.

Delivered in flow matched sets. Viton 14mm o-rings are supplied for installation in most American V8 cars and trucks 1986 and up.

Injector Body Design: Metal and composite plastic

Flow rates: All sets are flow matched to within 1.5%

We use the industry standard Heptane as our testing agent.

Tested Flow Rate:
154lbs/hr, 1600cc/min at 43,5 psi (3 bar)

This Fiveo injector will function at rail pressures in excess of 101 psi, 7 bar.

Excellent low pulse width response with predictable response down to 2.5 ms.

Excellent fuel atomization for modern multi-valve engines.

Injector type: New generation EV6 (USCAR)

Application: Super-street and racing, naturally- and forced-aspirated engines

Fuel Delivery: Single-hole, modified disc (see photo)

Electrical Connector: USCAR

Spray type: Wide cone, maximum atomization

Length: 2-1/2 inches, 62 mm

Body Diameter: 19 mm

Top Oring: Viton, 14.5 mm diameter

Bottom Oring: Viton, 14.5 mm diameter

Resistance: 11.8-15.5 Ohms - No in-line resistors are required

Fuel types: Gasoline, Methanol, E85, E25, E10

We are fuel injector experts - email with your questions.

All injector sets are sold with our 36 Months/Unlimited Miles Warranty
