160lbs/hr, 1680cc/min EV14 Fuel Injector, EV1, Jetronic

USE FOR HIGHLY MODIFIED U.S. Domestic/European/AU ENGINES.

• List price include one (1) fuel injector

• Multiple Injectors delivered in factory flow-matched sets

FLOW CHART: Each set is sold with a complete flow-data chart indicating dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR at 15%, 50% and 100% for each injector, along with a complete dead time (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

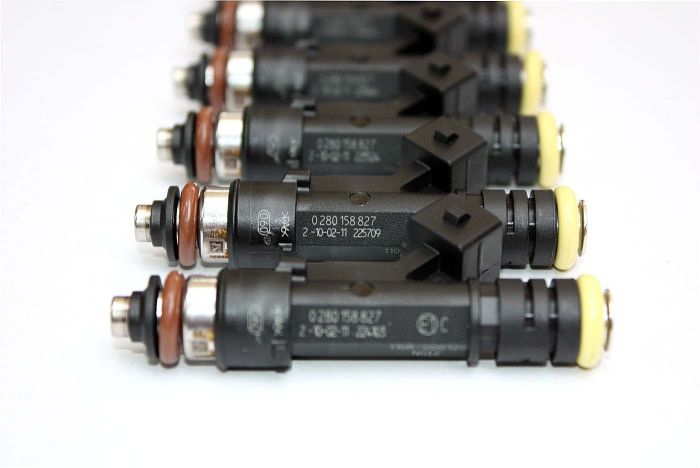

BRAND NEW genuine EV14 160lb/1680cc/min Fuel Injectors.

These are full length, "LONG" EV14 FUEL INJECTORS.

Body Design: Composite plastic, w/internal filter

Electrical connector type: EV1, Minitimer

Injector type: Saturated, EV14

Coil Resistance: 9.1 OHMS

Sample Dead Time (Latency): 1.0 ms at 14 volts, (Complete latency table ships with each flow-matched set).

Compatibility: Alcohol based fuels; Methanol and Ethanol;
Gasoline with additives MTBE/nitromethane, nitroethane, and nitropropane.

Tested and calculated flow rates:

160 lbs/hr at 43.5 PSI, 1680 cc/min at 3 BAR

180 lbs/hr at 58 PSI, 1900 cc/min at 4 BAR

200 lbs/hr at 72.5 PSI, 2105 cc/min at 5 BAR

Injector Length: Overall: 3.0 inches/ o-ring to o-ring: 2.5 inches, 64.5 mm

Injector diameter: 16 mm

O-ring/Seal: Viton, Fuel Rail - 14mm; Intake - 14mm
