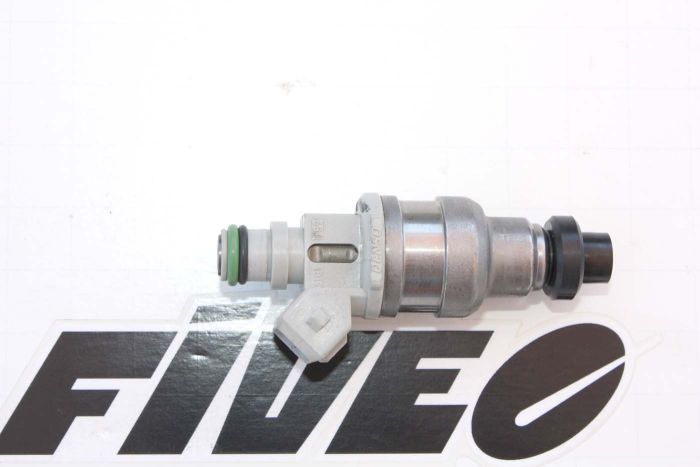

Denso 650cc, High-Z Fuel Injector, EV-1 Pigtail

USE FOR A HIGHLY MODIFIED ENGINE - CAN BE USED WITH STOCK FUEL RAIL AND ECU.

• This Denso injector is a high-performance, high-resistance fuel injector


• Custom-fitted for import 4 and 6 cylinder engines that require a very linear and easy to tune single-pintle fuel injector.


• LIST PRICE IS FOR A SINGLE (1) FUEL INJECTORwithEV-1Pigtail

• PURCHASE A SET AND RECEIVE A FLOW-MATCHED SET.

• DELIVERED WITH INJECTOR FLOW-TEST DATA CARD

• All new VITON o-rings/seals included for installation.



Flow-matched to within 1.5%.

This is a saturated-type fuel injector.

Use this custom matched set of Denso fuel injector for import super street or racing applications.

Fiveo provides individual flow data sheets showing the flow and pressure for each injector. Notice the control numbers etched into the body of each injector (see photo).

Fiveomotorsport guarantees injectors to be flow-balanced and matched according to our published specifications.

Fiveo's Exclusive Guarantee: We have never had to replace any single Denso fuel injector because of a blow out or coil failure.

Part number: F87EM650

Injector type: Single pintle, saturated

Connector type: Jetronic (EV1)

Flow Rates:

62lbs/hr, 650cc/min at 43.5 PSI (3 BAR)

66lbs/hr, 710cc/min at 50 PSI (3.5 BAR)

72lbs/hr, 760cc/min at 58 PSI (4 BAR)

Excellent linearity and easy tuning.

Resistance: 12.8 - 14.5 Ohms

Voltage: 8-15 Volts, Nominal 14.5 Volts

Amperage: 1.5 Amps

Pressure: Min. 36 PSI (2.5 bar), Max. 101.5 PSI (7 bar)
