750cc EV1 - Asphalt B and D Series Honda, 2.5 Ohm Fuel Injectors

This fuel injector has been custom fitted for all Honda B and D series engines (see photos).
You also receive the 11mm upper o-ring and 22mm lower seal for installation.

• Price listed is for a single (1) fuel injector

• Order 4 and receive a flow-matched set with data sheet included

• Add EV1 connector piftails if needed (see menu)

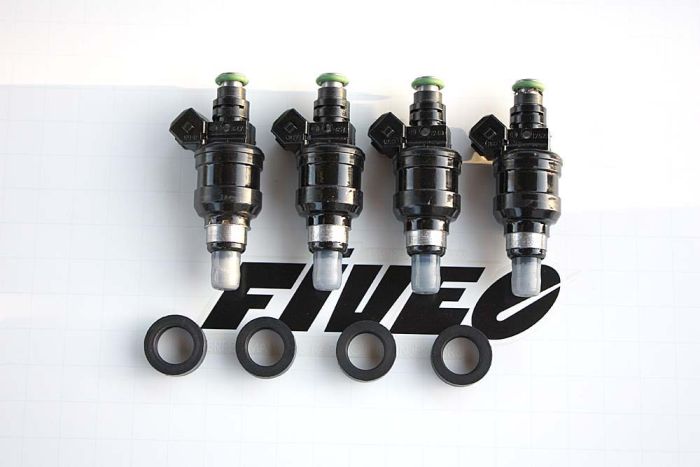

Custom fitted and flow-matched Fiveo "Asphalt Series" high performance 750cc/min fuel injectors.

Fitment: Honda 4 cylinder modified engines.

Asphalt Series

Flow Rate: 750cc/min at 43.5 PSI (3 Bar)

Resistance: 2.5 Ohms

Voltage: 8-15 Volts, Nominal 13.5 Volts

Amperage: 1.0 Amps

High duty cycle with a recovery time of only 2ms

Excellent fuel atomization for medium compression, single- and multi-valve engines.

Will not require more than 1% trim

Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

Surface finish: green top, bodies are painted black to prevent oxidation.

Easy tuning and accurate compensations.

All O-rings Included for installation.
