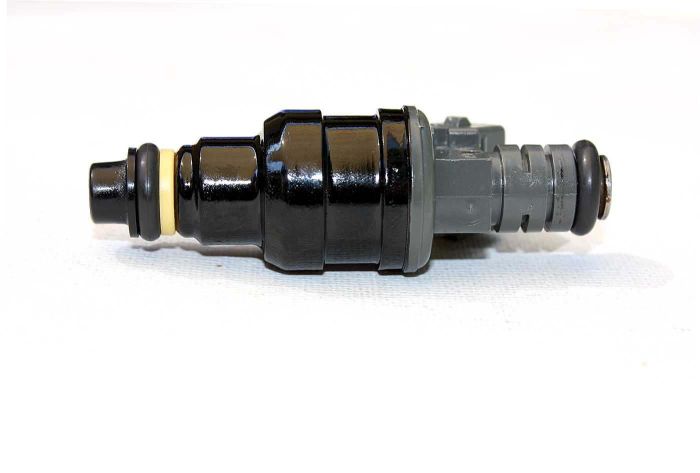

850cc, 83lb, EV1, High Impedance Flow Matched Fuel Injectors

FiveoMotorsport, custom flow-matched, 83lbs/hr, 850cc/min, high-flowing fuel injectors.

• High-impedance - 12.5 OHMS,

• These injectors are all custom manufactured brand new, and American-made.


• Price listed is for a single injector

FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.

• This fuel injector will function at rail pressures in excess of 101psi, 7 bar.
• Excellent low pulse width response with predictable response down to 2ms.
• Excellent atomization for modern multi-valve engines.
• This set will require no more than a 1% trim for easy tuning.
• Injector type: Steel body, EV1
• Application: Super-street and racing, naturally- and forced-aspirated engines.
• Fuel Delivery: Single-hole Pintle - 20-30 Degree Spray Pattern - Watch Video.
• Electrical Connector: Jetronic, minitimer
• Spray type: wide cone, maximum atomization
• Length: overall, 3 inches, 74 mm
• Length: o-ring to o-ring, 62 mm
• Body Diameter: 24 mm
• O-rings: Top and bottom, 14.5 mm
• Resistance: 12.5 Ohms
• Fuel types: Gasoline, MTBE, Methanol, E85, E25, E10
