52 lbs/hr; Delphi, Multec II - GM Supercharged V-8, 550 Wheel-HP

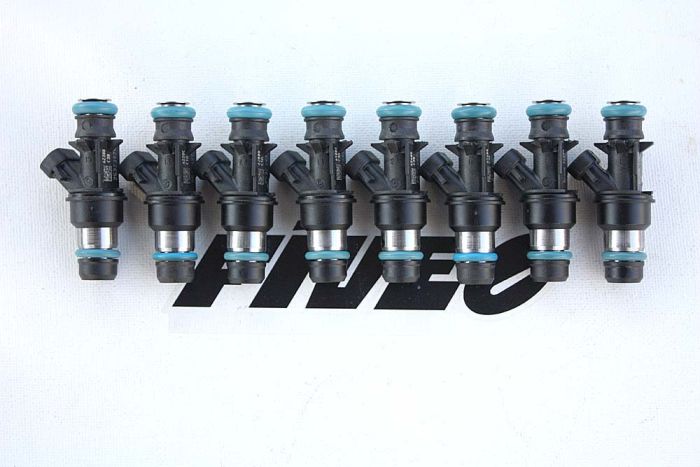

Delphi Multec II fuel injectors
52lbs/hr at 43.5 PSI / 550cc/min at 3 BAR

Each set is sold with a complete flow-data chart indicating individual dymanic and static flow rates
at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with dead time (latency) period at 14 volts.

Use late model GMC 4.8, 5.3, 8.1, and 6.0 supercharged applications

Injector Body Design: Multec II, Metal and composite plastic

Flow rate:

52 lbs/hr at 43.5 PSI, 550 cc/min at 3 BAR

57 lbs/hr at 43.5 PSI, 610 cc/min at 3.5 BAR

62 lbs/hr at 43.5 PSI, 660 cc/min at 4 BAR

Excellent low Latency time: 0.5 ms at 14 volts

Electrical connector type: Mini Delphi (stock for GM trucks).

Fuel delivery type: Single-hole disc, cone plume, max. fuel atomization

Overall Length: 2-5/16 inches, 58 mm

Oring to Oring: 1-7/8 inches, 48 mm

Diameter: 17 mm

Orings: Top and bottom, 14.5 mm

Solenoid resistance: 12.0 Ohms

(All fuel injector specifications meet or exceed the manufacturer's specification standard).
