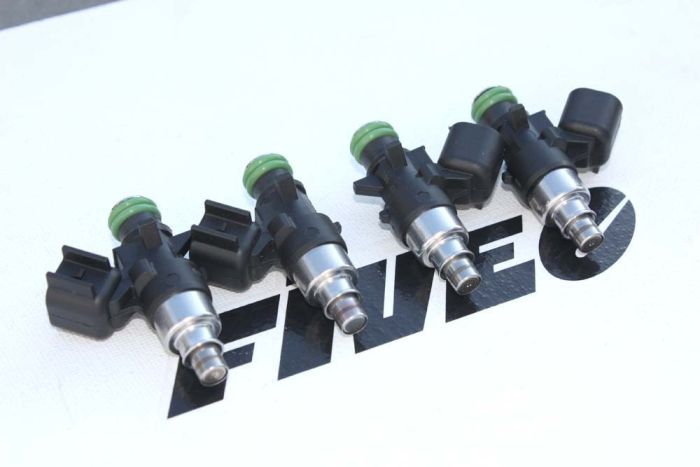

EV14 - Compact Length, Import Fit 12 mm

This EV14 injector set is a stock OEM fuel injector - custom fitted for import fuel rails with 12mm o-rings.
Set is sold with a set of EV6 female electrical connector pigtails. (See photos).

You receive the highest quality fuel injectors for superstreet and racing applications.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with dead time (latency) at 14 volts.
Flow matching was done with industry-standard equipment of the highest quality. The test was performed at varying temperatures to achieve realistic results.

Fiveomotorsport is a respected name in high performance and racing parts.

This Generation III/EV14 composite fuel injector is better suited to the high pressures of modern engines over the old fused plastic/metal body injectors.

None of our customers have ever reported a blowout or failed coil even with pressures exceeding 100 psi.

This fuel injector has excellent high and low pulse width response times.

These sets are very consistant and will require no more than 1% trim for easy tuning and accurate compensations.

(See additional specs below).

Fiveo's Exclusive Guarantee:

If you ever have an injector go outside spec or fail for any reason when functioning within the manufacture's stated operating conditions, whether in a street or racing application, we will replace it with a brand new fuel injector. We will only ask that you pay the shipping.

You are purchasing a brand new high performance

Part number: 158233300

Injector type: EV14, saturated

Tested Static Flow Rate:

310cc/min at 3 BAR (43.5 PSI)

(Some slight variation in flow rate can be expected from set to set).

Resistance: 12.8-14.5 Ohms

Voltage: 8-15 Volts, Nominal 13.5 Volts

Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)

Surface finish: Black composite

All Viton o-rings Included for installation.
