Bosch, Varied Flow Rates: Euro Sport Ultra-Performance

THE NEWEST TECHNOLOGY FUEL INJECTORS FROM FIVEO-MOTORSPORT

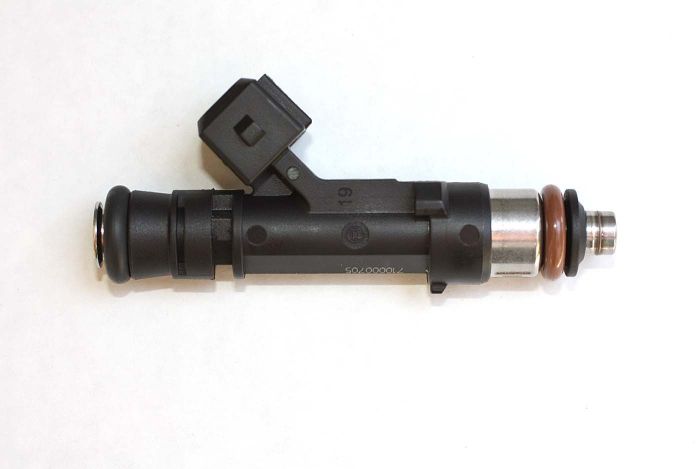

BOSCH EV14 STYLE, LONG-FIT FUEL INJECTORS with Jetronic CONNECTOR

Lamborghini Murcielago, Ferrari, Aston-Martin, Bentley V-12 Power

Custom, Flow-Matched Fuel Injectors sets available

Bosch-style, EV14, LONG, JETRONIC

• Listed Price is for a single fuel injector

• Direct Fit for many US / Euro applications with Bosch EV1 style injectors

DIRECT-FIT REPLACEMENT FOR MANY U.S. Domestic & European Applications

SAMPLE V-12 HORSEPOWER RATINGS:
(All ratings assume OEM stock or built, all-engine, crank-horsepower, running 91-95 octane gasoline).

30 LBS/HR - 588
36 LBS/HR - 675
42 LBS/HR - 773
52 LBS/HR - 955
62 LBS/HR - 1,112

High Resistance coils
Genuine Bosch EV14 fuel injectors
Flow-Matched Sets - Available

RATED FOR ALL-FUELS; Gasoline, MTBE, Ethanol, E10, E25, E85, M100, Q VP racing (not recommended for use with Nytromethane).
Complete latency tables at 3.0, 4.1, 4.8, 5.5, 6.2, & 6.9 BAR supplied with each set
Dynamic and static flow balanced sets are matched to within 1.0-1.5%

Specifications:
This injector will function at rail pressures in excess of 116 psi, 8 bar.
Excellent low pulse width response with predictable response down to 1 ms.
Injector Body Design: EV14, black composite

Flow nozzles: 315cc, 380cc, 450cc - 4-hole; 550, 650, 750, 850 & 1000cc - Single-hole/Ball-in-Disc
Electrical connector type: EV1 / Jetronic
Length: 3 in., 74 mm
Body Diameter: 16 mm
Orings: Viton, top and bottom, 14.5 mm
Resistance: 12.5 Ohms (high-impedance, may require addition of resistors for some applications).
