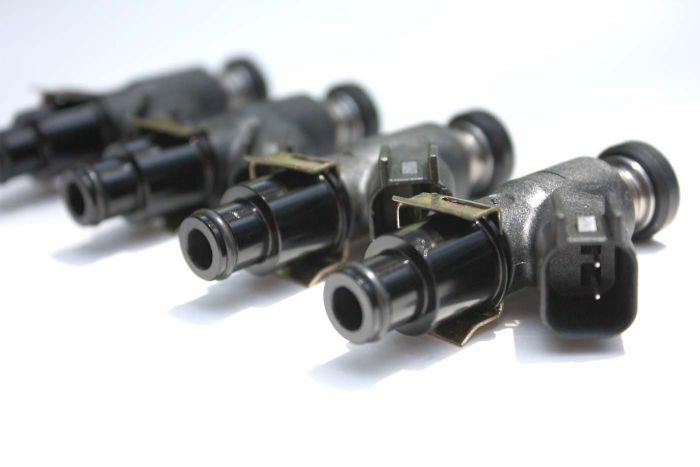

1000, 1200, 1600, Mazda RX-7, Black-Ops M-Series

• "Black-Ops M-Series"


• RX-7 Long-length with 11mm top o-ring and 16mm bottom seal


• PRICE INCLUDES Complete split sets - 2 of each of two different flow rates


• Choose from 5 different split flow-rate sets

• If you don't see the set you need - Call - Ask about a discount on custom sets.

Made in USA
ULTRA FAST RESPONSE TIMES:CONSISTENT EVEN AT VERY LOW PULSE WIDTHS. fast DEAD-TIMES ACROSS THE OPERATING VOLTAGE RANGE

• FREE ELECTRICAL ADAPTERS/pigtails INCLUDED
• COMPATIBLE WITH ALL PERFORMANCE FUELS - Gas/MTBE, E85, Q16, etc.
• STAINLESS STEEL Construction

Fuel Injector Specifications:
Fuel Delivery: Single-hole ball valve/flat plate (for maximum fuel atomization).
Coil Resistance: 12.5 OHMS (high-impedance)
Flow-Matched sets are delivered in flow rates at or very near the advertised flow rate (you will get a set that is exactly flow-matched to within a best-in-the-business 0.5-1.0% -- guaranteed).
Minimum Pulse Width: 1.4 ms

With your order you will receive a complete flow-data-sheet showing actual tested flow rates for your individual injectors (see photos)
Data sheet includes static flow data at 3 Bar (43.5 psi), 3.5 Bar (50.8 psi) and 4 Bar (58.0 psi). Black-Ops injectors can operate at 100+ psi.
Also included: Dynamic flow data at 3 Bar at 6000 rpm and 5.0 ms and idle data at 800 rpm and 1.5 ms
Full latency (dead-time/offsets) table from 8 volts to 18 volts at 3 Bar

Injector Dimensions:

Electrical connector type: USCAR
Overall length: 72 mm - approx. 2.9 in
Body Diameter: 17 mm - 0.70 in
O-ring to o-ring, on center: 62 mm - approx. 2.5 in
Upper o-ring diameter: 11.5 mm - 0.45 in
Lower seal diameter: 16 mm - 0.60 in
O-ring/seal material: Viton
