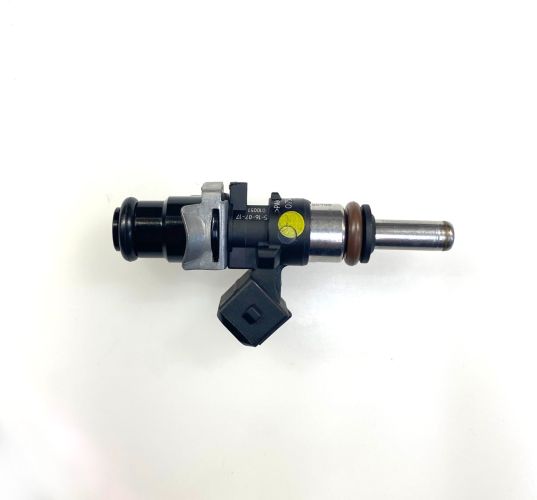

Bosch EV14EK; 1000cc, 6-hole X-Nozzle
- Bosch, Factory Flow-Matched 1000cc Fuel Injectors
- FITS: 4B11-Evo X, BMW M5, Mercedes, Audi, VW, etc.
- DYNAMICALLY AND STATICALLY BALANCED AT A TRUE 1000cc/min - 96 lbs/hr
- BRAND NEW flow-matched, EV14 standard-length w/extended nozzle, fuel injectors
- Includes all required o-rings/seals to properly fit your engine
PRICE INCLUDES (1) FUEL INJECTOR
Injector information and specifications:
FLOW CHART: Injectors are delivered with a complete flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR. As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle. Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Injector type: EV-14, saturated
Spray Nozzle: 6-hole disc w/diffuser plate for maximum fuel atomization
Coil Resistance: 12.5 Ohms, high impedance
Dimensions:
Overall Length: 2.95 inches, 74.5 mm
O-ring to oring: 2.00 inches, 50.5 mm
O-rings: Viton, top and bottom, 14.5 mm diameter
Electrical connector type: EV-1, Jetronic
| Manufacturer | GENUINE BOSCH |
|---|---|
| OEM or Aftermarket | High Performance |
| Connector Type | Jetronic (EV1) |
| Impedance | 12.5 OHMS |
| Part Number | 040U1000X, 040M1000X |
| Make | AUDI, BMW, MERCEDES-BENZ, MITSUBISHI, PORSCHE |
| Model | LANCER |
| Engine | EVOLUTION GSR, L4, 2.0L, 4B11, V, Turbo, GAS, EVOLUTION MR, L4, 2.0L, 4B11, V, Turbo, GAS |
