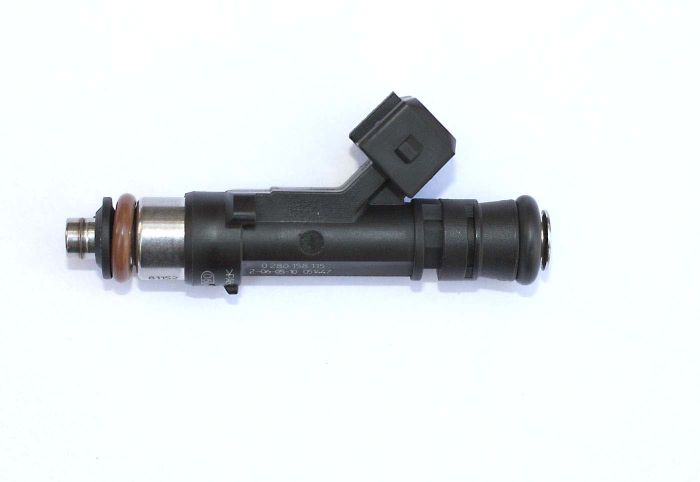

Bosch, 550cc, Volvo B5254T, B5244T, B5234T, T5, Matched, E85
Custom Bosch/Fiveo
Part Number:
115U, Volvo
Resistance:
12.5 Ohms
Connector Type:
Jetronic (EV1)
Country Of Manufacture:
United States
High Performance
$87.50 (USD)
This injector has excellent high and low pulse width response times.
550cc. (Varied flow rates up to 1000cc/min-96lbs/hr are available).
These sets are very consistent and will require no more than 1% trim for easy tuning
with accurate compensations down to 0.7 ms.
FUEL INJECTOR SPECIFICATIONS:
Injector type: Saturated
Spray Nozzle: 4-hole and single-hole disc
Flow pattern: 8-25 degree wide cone for multi-valve engines
Flow Rate: Varied at 3 BAR
Resistance: 12.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 145 PSI (10 bar)
Surface finish: Black composite
Overall length: 75 mm
O-ring to oring: 64 mm
O-rings: All 14.5 mm Viton o-rings Included for installation.
| Manufacturer | Custom Bosch/Fiveo |
|---|---|
| OEM or Aftermarket | High Performance |
| Connector Type | Jetronic (EV1) |
| Impedance | 12.5 Ohms |
| Part Number | 115U, Volvo |
| Year(s) | 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 |
| Make | VOLVO |
| Model | S60 |
| Engine | 2.5T AWD, L5, 2.5L, B5254T2, 59, Turbo, GAS, 2.5T, L5, 2.5L, B5254T2, 59, Turbo, GAS, L5, 2.3L, B5234T3, 53, Turbo, GAS, L5, 2.4L, B5244T3, Turbo, GAS, L5, 2.5L, B5254T2, 59, Turbo, GAS, R, L5, 2.5L, B5254T4, Turbo, GAS, T5, L5, 2.3L, B5234T3, Turbo, GAS, T5, L5, 2.4L, B5244T5, Turbo, GAS |
