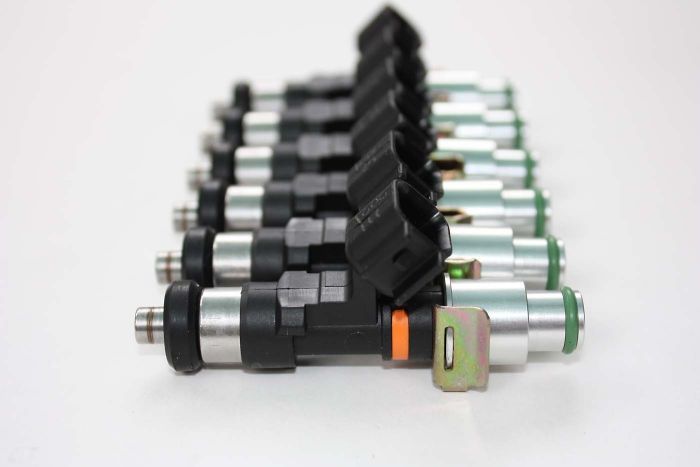

50lbs Bosch, 117M525x; Asian Import Sport Compact, Matched

EV-14, Bosch: This is not a modified fuel injector.
Standard 6-hole disc fuel nozzles.

List Price Includes: One fuel injector and one connector

All-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then sealed and placed in matched sets ready for shipping.
You don't get this kind of technology from an OE injector.

These fuel injectors are very consistent and will require no more than 1% trim for easy tuning with accurate compensations.
Minimum pulse rate: 1.1 ms

Injector type: 6-hole disc, EV14

Tested Flow Rate: 525cc/min at 3 BAR

Resistance: 12.8 Ohms

Voltage: 8-15 Volts, Nominal 13.5 Volts

Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)

Dead Time: 0.7ms at 14 volts

Surface finish: Black composite

All Viton o-rings Included for installation.
