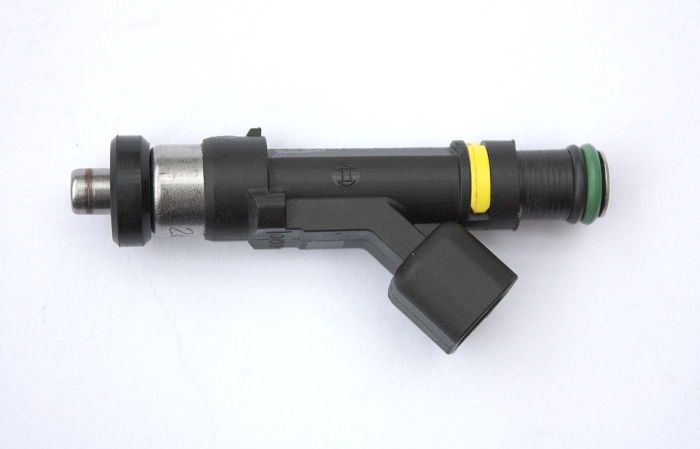

Bosch, 750cc, EV-14, Asian Import, 4AGE, 7MG, 2JZ, Miata, RX-7, Evo 8/9

USE THIS INJECTOR FOR A HIGHLY MODIFIED ENGINE ONLY.

Fiveomotorsport custom 750cc flow-matched, EV14 fuel injectors for import applications - naturally aspirated or turbocharged/supercharged 4 and 6 cylinder engine.

EV14 with internal filter

Flow Rates: (Actual flow rates no more than 0.5-1.0%).

750cc/min at 43.5 PSI (3 BAR)

810cc/min at 50 PSI (3.5 BAR)

866cc/min at 58 PSI (4 BAR)

Resistance: 12.5 Ohms, high resistance

Voltage: 8-15 Volts, Nominal 13.5 Volts

Amperage: 1.0 Amps

Dead Time: 0.75 ms at 14 volts

Excellent fuel atomization for medium compression, single- and multi-valve engines.

Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)

Surface finish: Black composite

Easy tuning and accurate compensations.

All O-rings Included for installation.

This injector will support gasoline or E85.

This injector has excellent high and low pulse width response times.

These sets are very consistent and will require no more than 1% trim for easy tuning with accurate compensation down to 1 ms.
