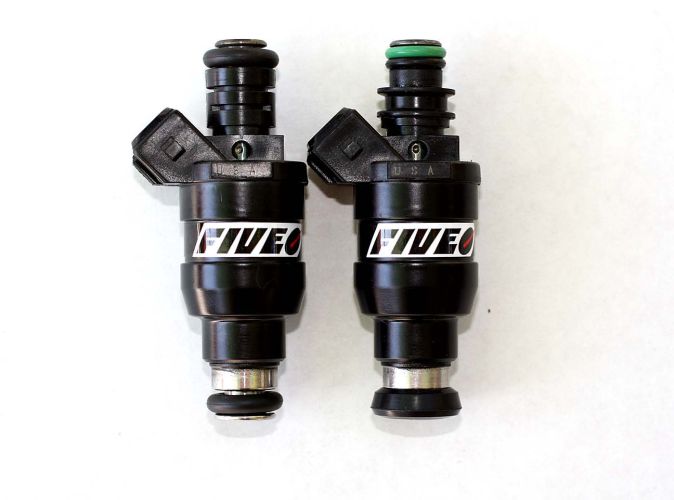

Lucas, 01D134B, 120 lbs/hr, 2.5 Ohms, Matched sets available

Brand new genuine Lucas 120 lbs/hr fuel injectors, Made in U.S.A.
List price includes a single (1) fuel injector.

Can be fitted for US/Euro and Asian Imports - see menu options.

• US/Euro Fit:  14mm upper and 14mm lower o-rings
• Asian Import:  11mm upper o-ring and 16mm lower seal

Use this injector for normally aspirated and forced air induction, high horsepower applications

All fuels rated, E85 approved.

Injector Body Design: Steel and composite plastic

Flow rate: 120 lbs/hr 1260 cc/min at 43.5 psi (3 BAR)

Electrical connector type: Jetronic (minitimer, Bosch EV1)

Fuel delivery type: Ball and disc w/splitter nozzle, excellent fuel atomization

Length: 3 inches, 74 mm

Injector Body Diameter: 24 mm

Viton o-rings: Top and bottom, 14.5 mm

Low Resistance: 2.5 Ohms (peak and hold)

3 BAR, 14 volt dead time: 0.455 ms

(All fuel injector specifications meet or exceed the manufacturer's specification standard).

Note: This injector is a Pro-Tune part only and requires expert tuning knowledge. Does not delivery with a data sheet. No dead time/latency table. No high/low slopes, No offsets. No minimum or maximum pulse rates.
