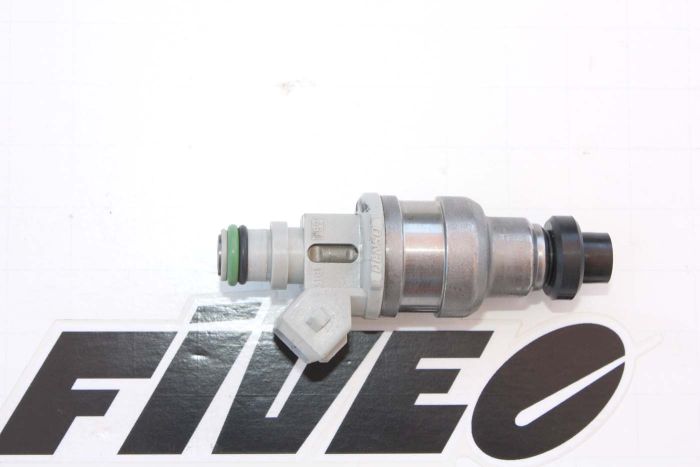

Denso 450cc, 42lbs/hr, Import Fit

DENSO, HIGH-IMPEDANCE FUEL INJECTOR

• FITS DSM/EV1 style electrical connector
• Flow-matched 450 cc/min - high resistance
• List price is for a single (1) fuel injector
• Purchase multiple injectors, and receive a flow-balanced & matched set
• Injector data included

This injector can be used for super street or racing applications.

• New Viton o-rings/seals included for installation.

FLOW CHART: Delivered with a complete flow-data chart indicating individual dynamic and static flow rates at 3.0, 3.5, and 4.0 BAR. These injectors will maintain linearity throughout the test range of 15%, 50% and 100% duty cycle. Data also includes a complete dead time (latency) table.
Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.
Individual sets may flow differently than this set. But no set will ever vary more than +/- 1.0%


Mfg. P/N: F87EM450
Flow Rate: 450cc/min at 43.5 PSI (3 bar)
Latency (dead time): 0.500 ms at 14 volts (complete table included)
Resistance: 12.8-14.5 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min. 36 PSI (2.5 bar),  Max. 101 PSI (7 bar)
