OBD2-SERIES: 42lb/450cc, 52lb/550cc, 62lb/650cc - Custom Honda Series B- D- H

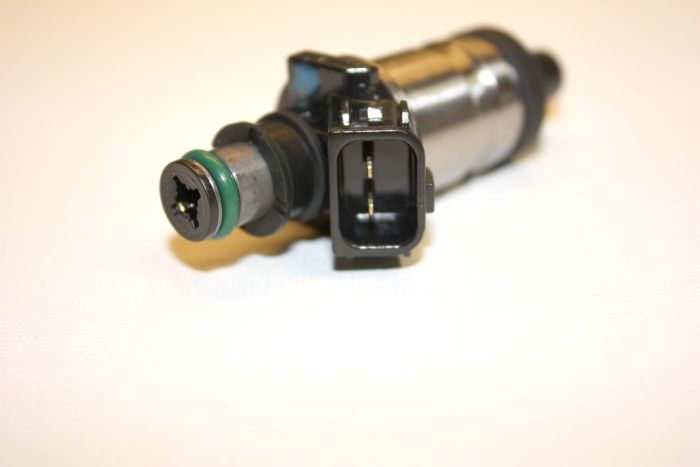

THIS INJECTOR IS SPECIFICALLY FIT for HONDA & ACURA - OBD2 (KEIHIN)

• ULTRA QUICK REACTING FUEL INJECTORS

• STOCK IDLE QUALITY

• High Resistance; 14.5 OHMS

• OBD2 Fit

• MAY REQUIRE Stock Resistor Box

• Direct fit - no cutting or splicing

• Price includes a single fuel injector

• Delivered in Flow Matched Sets - When purchasing a complete set.


• All sets delivered with complete dynamic, static and latency data.


• Capable of running over 7 bar under boost.

• FEATURING: A single pintle fuel nozzle for maximum fuel atomization.

• Expertly flow-matched to within 1.5%.

Fuel Injector Specifications:
Complete Latency/Dead-time Table: Sample dead time, 14v, 0.365 ms @ 3 Bar
Minimum Pulse Width: 1.4 ms
Coil Resistance: 14.5 OHMS

Dimensions:
Overall length: 74 mm - 2.9 in
Body Diameter: 23 mm - 0.90 in
O-ring to seal, on center: 64 mm - 2.6 in
O-ring diameter: 11.5, fuel rail
Bottom seal: 22x5 mm, intake.
O-ring material: Viton - upper, lower

Tested Static Flow Rates for the 450cc/42lb
450cc/min at 3.0 BAR (43.5 psi)
490cc/min at 3.5 BAR (50.8 psi)
540cc/min at 4.0 BAR (58.0 psi)

Tested Static Flow Rates for the 550cc/52lb
550cc/min at 3.0 BAR (43.5 psi)
600cc/min at 3.5 BAR (50.8 psi)
649cc/min at 4.0 BAR (58.0 psi)

Tested Static Flow Rates for the 650cc/62lb
650cc/min at 3.0 BAR (43.5 psi)
709cc/min at 3.5 BAR (50.8 psi)
767cc/min at 4.0 BAR (58.0 psi)

(Some slight variation in flow rate can be expected--all sets are matched to within 1.5%)

Voltage: 8-15 Volts, Nominal 13.5 Volts

Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 BAR)
