Bosch, BMW S62, S65, S85; Porsche; Mercedes-AMG; VW
INSTALL THIS FUEL INJECTOR UPGRADE IN A HIGHLY-MODIFIED,
HIGH PERFORMANCE; Turbo- and Supercharged ENGINE ONLY
"STANDARD" OEM FIT - 52 mm O-ring to O-ring - Fits: M-B, Mercedes-AMG*, BMW Z4 S85; S62, S65 4.0L V8; M54, Audi, VW, R32,
- EXTENDED FUEL NOZZLE - Mimics OE fuel injector
- Many flow-rates available (see drop-down menu)
36lb/370cc; 60lb/630cc; 72lb/750cc; 95lb/1000cc; 114lb/1200cc - Jetronic Electrical Connector - Direct fit - No rewiring required
- Does not require any adapters
- Price listed is for a single (1) fuel injector
- Multiple injectors ordered are delivered in flow-matched sets
- Retuning for optimized engine performance is recommended
S85 BMW, Volvo, M-B, VW, Porsche 911 Turbo, Mercedes-AMG 6.3L*, VW R32,
*NOTE: The (2007-2014) 6.3L AMG installation will require a pigtail connector replacement (see menu options)
2007 or higher your AMG uses a special wiring harness and requires you to change the connector to fit your new set of fuel injectors.
FLOW CHART: delivered with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.
E85 Fuel usage - Because of the high-H2O levels, ethanol will not rust but tends to "dry" the orifices in stainless-steel constructed fuel injectors. Customers should beware that this can be a problem with some fuel injectors and may cause a "sticking" problem. Periodic lubrication is recommended if your engine will be left without starting/running for extended periods - weeks to months - at a time.

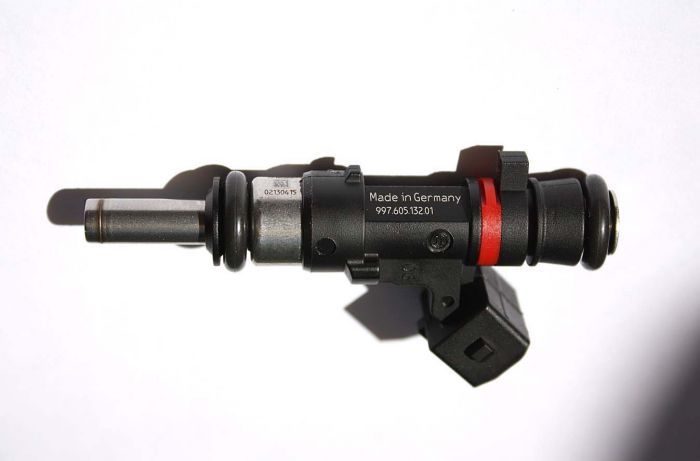

Injector type: EV14 STANDARD LENGTH with EXTENDED NOZZLE, with internal filter
Resistance: 12.8 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 130 PSI (9 bar)
Surface finish: Black composite
Connector: EV-1, Minitimer
All new 14.5 mm Viton o-rings Included for installation
| Manufacturer | Fiveo/Siemens |
|---|---|
| OEM or Aftermarket | High Performance |
| Connector Type | USCAR (EV6) |
| Flow Rate | Please select an option below |
| Impedance | 14.5 OHMS |
| Part Number | S85 VARIED FLOW RATES |
| Year(s) | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
| Make | BMW, MERCEDES-BENZ |
| Model | 330CI, 330I, 330XI, M5, M6, Z4, Z8, R63 AMG, ML63 AMG, SL63 AMG, CLS63 AMG, CLK63 AMG, CL63 AMG, C63 AMG, S63 AMG, E63 AMG |
| Engine | 2.5I, L6, 2.5L, M54, GAS, 3.0I, L6, 3.0L, M54, GAS, ALPINA, V8, 4.8L, GAS, COUPE 3.0SI, L6, 3.0L, N52, GAS, L6, 3.0L, M54, GAS, L6, 3.0L, N52, GAS, M COUPE, L6, 3.2L, S54, GAS, M ROADSTER, L6, 3.2L, S54, GAS, M, L6, 3.0L, M54, GAS, ROADSTER 3.0I, L6, 3.0L, N52, GAS, ROADSTER 3.0SI, L6, 3.0L, N52, GAS, ROADSTER, L6, 2.5L, M54, GAS, ROADSTER, L6, 3.0L, M54, GAS, V10, 5.0L, S85B50A, GAS, V8, 5.0L, S62, GAS, BLACK SERIES, V8, 6.3L, 156.982, GAS, V8, 6.3L, 156.981, GAS, V8, 6.3L, 156.980, GAS, V8, 6.3L, 156.983, GAS, V8, 6.3L, 156.982, GAS, V8, 6.3L, 156.984, GAS, V8, 6.3L, 156.985, GAS |
