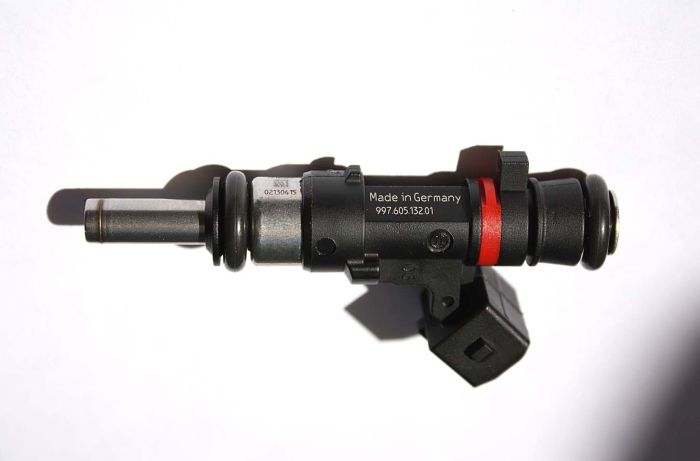

Siemens, Porsche GT3, GT3RS, Turbo, Matched SETS

INSTALL THIS FUEL INJECTOR UPGRADE IN A HIGHLY-MODIFIED, HIGH PERFORMANCE ENGINE ONLY

• LONG NOZZLE - Mimics OE fuel injector
• Four flow-rates available (see drop-down menu):
  57lb/600cc; and 72lb/750cc
• Jetronic Electrical Connector - Direct fit - No rewiring required
• Does not require any adapters
• Price listed is per injector
• Multiple injectors ordered are delivered in flow-matched sets
• Retuning for optimized engine performance is recommended

FIVEOMOTORSPORT FUEL INJECTORS are custom-manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E-85.
The finished injectors are then flowed and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: Each set is sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
Linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
E85 Fuel usage - Because of the high-H2O levels, ethanol will not rust but tends to "dry" the orifices in stainless-steel constructed fuel injectors. Customers should beware that this can be a problem with some fuel injectors and may cause a "sticking" problem. Periodic lubrication is recommended if your engine will be left without starting/running for extended periods - weeks to months - at a time.

Flow Rates:
57lb/600cc, Single Nozzle
72lb/750cc, Single Nozzle
Resistance: 12.8 Ohms
Voltage: 8-15 Volts, Nominal 13.5 Volts
Pressure: Min. 36 PSI (2.5 bar), Max. 145 PSI (10 bar)
Surface finish: Black composite
Connector: EV1, Jetronic
All new 14.5 mm Viton o-rings Included for installation.
