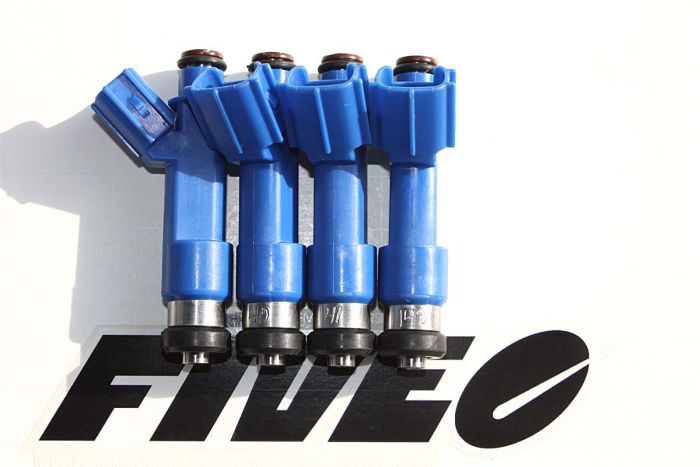

Toyota 710 cc/min - 1ZZ, 2ZZ, Scion, Lotus

You are purchasing a brand new 710cc/min custom milled, and flow-matched set of Denso fuel injectors.

Use for highly modified 1ZZ and 2ZZ 1.8L four-cylinder, 1UZ and 2UZ V-8 engines that incorporate a standard Denso fuel injector and 11.5mm/16mm seals.

Our injectors are custom-milled from brand new American/German/Japanese-made fuel injector "cores" in large-quantity batches to achieve the highest quality product.
The resulting sets are all-fuels rated; including gasoline (MTBE), and E-85. The finished injectors are then flowed and inscribed with a control number. Data is recorded for each injector. They are then hermetically-sealed and placed in matched sets ready for shipping.

• You don't get this kind of technology from an OE injector.

FLOW CHART: Each set is sold with a complete flow-data chart indicating individual dynamic and static flow rates at 3, 3.5, and 4 BAR at 25%, 50% and 100% for each injector, along with dead time (latency) at 14 volts. Flow matching was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results. Linear tuning with excellent low-end, and idle rpm.

This injector is a direct-fit replacement upgrade for a modified Toyota engines - No electrical connector change needed - No resistors.

Use for super street or racing 4, 6 and 8 cylinder applications.

$299.99 per set of 4 fuel injectors

Brand New High Flowing, Flow-Matched Fuel Injector Set

The Denso brand is a respected name in high performance and racing parts.

Fiveo's Exclusive Guarantee:
If you ever have an injector go outside spec or fail for any reason when functioning within the manufacturer's stated operating conditions, we will replace it with a brand new matched fuel injector.

Flow Rates: Standard measurements taken in a controled inviornment. We use Heptane as our testing agent. (The Bosch 0280155968 is our basis fuel injector for testing).
710 cc/min at 3 bar
760cc/min at 3.5 bar
820cc/min at 4 bar

Latency (dead time): 0.75ms at 14 volts

Part number: 232500D050710

Resistance: 11.8-14.5 Ohms

Voltage: 8-15 Volts, Nominal 13.5 Volts

Amperage: 1.0 Amps

Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

All O-rings Included for installation.
